Each Techni-Mix HD Series tilt-body intensive rubber mixer from TMP provides the highest quality mixing of your precise rubber, silicone and plastic formulations at an initial cost that is about 50% less than traditional rubber mixing equipment. Each Techni-Mix rubber mixer is designed and built to meet your specific needs.
Techni-Mix Series for Precise Rubber, Silicone & Plastic Formulations
TMP offers a variety of batch sizes for every application — even the toughest compounds from a 5-liter laboratory rubber mixer to the larger 35 to 110 liter production models. Completely American-made, Techni-Mix rubber mixers are designed to the highest engineering standards and manufacturing specifications. Quality components such as Timken roller bearings, Reliance high-horsepower motors and Lufkin gear reducers make the Techni-Mix rubber mixers as dependable as they are versatile. Techni-Mix rubber mixers have many features, including state-of-the-art controls, to make this product the premier system of its kind. Unlike Banbury® type rubber mixers, the Techni-Mix is designed to be as intensive as a drop door style rubber mixer but incorporated into a versatile tilt mixer configuration for ease of clean out between different compounds and colors.
Contact us for more information on our Techni-Mix series or download our literature on the Techni-Mix tilt-style mixer.
PRODUCT DESIGN BY TYPE
Product Literature Downloads

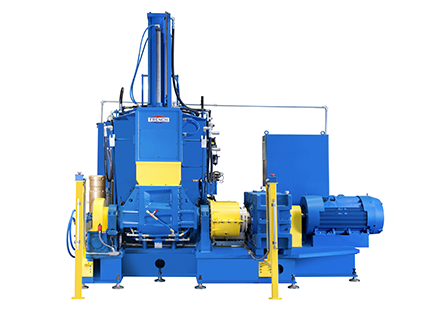

55 liter Techni-Mix rubber mixer
French Intensive Rubber Mixer
Silicone and Rubber Mixer Features:
Increased Chamber Life
- Stainless Steel Work Hardening Chamber
- Stainless Steel replaceable wear plates
- Hard Chrome plating on all internal surfaces
High-Shear Advanced Rotor Design
- Dual Helix Tangential High Shear Design
- Single-Piece Cored Casting
- Hard-faced Wing Tips
- Hard Chrome Surface Coating
- Replaceable Hard Faced Rotor Collars
Superior Heating and Super-Cooled for Single Pass Mixing
- Chamber Cooling Passages Drilled Next to Working Surface
- Floating Weight Cooling
- Cored Rotor Cooling
- End Frame Cooling Passages
- Chamber Thermocouple
- Consistent Material Temperature
- Contoured Cast Cavities for Increased Surface Area
- Flood Fluid Heating and Cooling
- Closed Loop Thermocouple Control
Advanced Controls
- TFT Color Screen
- Techni-Mix Complete Mixing and Ingredient Software
- Industrial PC Network Interface for Data Acquisition and Analysis
- Color Coded and Lighted Switches
- Unlimited Recipe Storage
- Alarm Status with Continuous Monitoring
- Multi-Level Password Protection
Tilting Assembly for Quick, Easy Access, Cleanout
- Chamber on Stress-relieved fabricated pedestals
- One-piece Assembly on Roller Bearings
- Tilt up to 180 deg. with Gearhead Motor Brake
Low Maintenance Lubrication
- Lubeless maintainable dust stop design
- Trabon grease system
- Air cylinders mist-oil lubed
Floating Weight with Controlled Cooling, Pressure
- Floating Weight one-piece cored casting
- Contoured inner section
- Pressure controlled double-acting ram cylinder
- Chamber-sealed
Dependable, Powerful, Variable Drive Section
- Variable Speed to 50 RPM
- Forward/Reverse
- High Horsepower Standard
- Surge/ Thermal Overload Protection
- Direct Gear Coupling
Standard Sizes and Horsepower
- 35 Liter 125 HP
- 55 Liter 150 HP
- 75 Liter 200 HP
- 110 Liter 300 HP
DC motor with SCR drive control. (AC Variable Speed Drives and alternate HP Ratings available.) The Techni-Mix rubber mixer series offers additional options such as the newest of which is Vacuum Mixing for better housekeeping and avoidance of trapped gases in the stock.
Request a Rubber Mixer Quote
Since 1978 Technical Machine Products has been engineering and manufacturing technologically advanced intensive mixers, hydraulic presses and related components, controls and auxiliary equipment. TMP also rebuilds and services machines and parts for thousands of customers.
