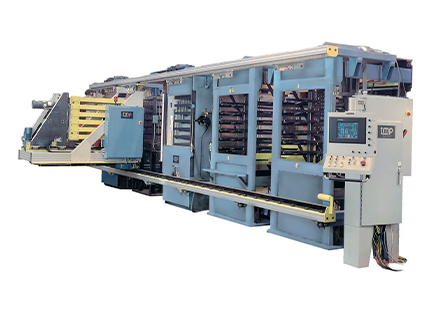

PCB Lamination Press
TMP printed circuit board (PCB) lamination presses lead the industry in advanced engineering and system innovations. Our Hydraulic Vacuum Press systems come in a large variety of standard and custom sizes and capacities to fit your needs. Specialized heated platens, up to 1200°F, allow high-temperature lamination for maintaining homogeneous material properties. Our Edge Advanced Control System gives you flexibility in your processing by allowing process parameter monitoring, recipe storage at press, real-time data storage and other custom recipes with selectable sheet sizes. Should your requirement be research/development or daily production, the TMP press offers lower energy consumption, ease of operation, accuracy and dependability.
Custom PCB Lamination Presses with Specialized Heated Platens
Choose from a list of our standard and optional lamination press capabilities and auxiliary equipment:
- Side plate design for perfect parallelism for uniform resin flow
- High-temperature riser bars
- Powered loader and unloader with optional “shark fin” boom arm
- Compact sliding doors for reduced floor space
- Temperature controlled bolsters
- Ultra-low-pressure control
- Pneumatic counter balances
- Enclosed pre-vacuum accumulators
- Walkie stacker units
- Product carrier trays
- Proportional pressure valves
- Mass depinners
- Universal CNC Depinner
- Closed loop cooling unit

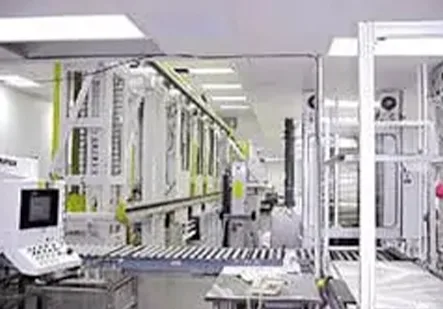

20″ x 26″ 8-opening hydraulic press system
30″ x 40″ vacuum molding press system
Custom Designed Automatic Hydraulic Lamination Press for Circuit Board Manufacturing
Read a case study on on how we developed a multi-purpose, 300-ton automatic hydraulic lamination press system for the printed circuit board industry.
Choose from a full range of lamination presses from fully automated or multi-station systems:
- Plastic Card Lamination Press
- Compression Molding Machine for Lamination
- The “Starter” Lamination Press
