The TECHNI-MOLD Hydraulic Press for molding rubber & silicone parts has been a principle product line for over thirty years, with hundreds of installations to satisfied and repeat customers. French remains a leader in this industry by continuously incorporating technological advancements to this line of presses with advanced controls provide press control, accuracy and flexibility.
Techni-Mold Hydraulic Press Features for Molding Rubber & Silicone Parts
We want to Partner with you and understand your business to learn how we can help improve your molding processes with our custom design and capabilities. Consult with a French engineer.
Scope of Supply:
Our current press specifications cover a wide range of design parameters:
Tonnages: 5 to 3,000 tons
Platen dimensions: 5" – 14 feet
Closing speeds: 40 to 300 inches / minute
Platen heating: Oil, Electric, Steam, Isoplaten®
Number of Daylights: 1-20
Hydraulic pressures: Up to 3,000 psi
Hydraulic preferences: Rexroth, Bosch
Control Processors: Allen Bradley
Operator Interfaces: Allen Bradley, Maple
Types of Rubber Molding Presses:
We offer a variety of hydraulic press machine styles including automatic hydraulic press systems and stand alone presses:
- Straight Compression Molding
- Hydraulic Transfer Press
- Hydraulic Vacuum Press

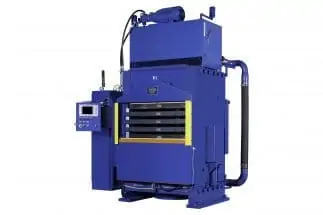

1300 ton slab side hydraulic press for the automotive industry
PRODUCT DESIGN BY TYPE
DESIGN BY TONNAGE
Product Literature Downloads
Standard Hydraulic Press Components:
Press Frame
- Slab-Side type press – A Vacuum chamber can be readily incorporated into this frame design
- Four-Post type presses – We uses high-tensile rods with over-size diameters, which are identically machined with square shoulder to maintain crosshead parallelism
- C-Frame and Window Frame types are available for special applications
Advanced Controls Systems
Process control programming allowed in our Advanced Control Systems improve product quality through better pressing accuracy and repeatability. Learn more about our state-of-the-art control systems.
Press Platens
- Electrically heated platen presses are uniquely designed for uniform heat distribution and temperature control. TMP has designs for high-temperature applications.
- Oil heated platen presses are also available. This method provides very accurate and uniform temperature over a wide range of molding applications.
- Steam heated platen presses are efficient for temperatures to 360°F (150PSI). Our platens have individual steam traps for better uniformity over systems with a single trap.
- Our platen presses with integrated Isoplaten® heated platen technology provide high levels of thermal stability to rubber molding applications and can be designed for electric, oil or steam heated systems.
Compression, Transfer and Vacuum Press Optional Features and Upgrades
Our experienced engineers can optimize your molding process with custom vacuum press design options and enhanced automation. They include:
- A Hydraulic Transfer Cylinder added to a slab side or post press.
- Hydraulic Upgrades for Precision Control of Speeds and Pressures
- Electrical Control Options
- Multi-Press Systems with consolidated controls and hydraulics
- Platen upgrades for higher temperatures, or cooling passages
- Mold and/or Platen Shuttle Systems
- Part knock-out stations
- Shuttles for transfer molding sprue-plate removal
- Transfer pot feeding systems
- Silicone stuffers
- Techni-Mold Lab Presses
- Automatic Hydraulic Press Retrofits & Upgrades
Hydraulic System
French's press hydraulic systems are proven for efficiency and long-term reliability. These hydraulics combined with our advanced controls provide press control, accuracy and flexibility unmatched in the industry. The system includes:
- Hydraulic unit, consisting of a steel constructed reservoir, pump, motor. Features are built-in such as slow decompression, to eliminate hydraulic shock and extend operating longevity.
- Ram pre-fill system with side cylinders for fast closing speeds A “kidney loop” for proper filtration.
- Ram pressure control of the machine using CPS Controls is accomplished by a very accurate and maintenance-free proportional closed-loop hydraulic pressure control valve and associated electronics.
- Dual transducers are used for backup and reliability of pressure control to maintain calibration.
Press Ram & Main Cylinder
- Ram-Cylinder designs are heavy-duty and rated to 3000PSI. The designs contain special guiding and sealing to provide accurate alignment and reduced wear.
Press Crosshead
- Machined from thick solid steel plate to minimize deflection.
Moving Bolster Assembly
- Bolsters are machined steel, ground flat and parallel. Bolster guides are heavy-duty and are temperature-compensating in their configuration, allowing constant clearances to maintain parallelism.
Service & Support
The French Oil Mill Machinery Company provides solutions that Fit Your Exact Needs — Aftermarket Parts, Maintenance, Rebuilds, Retrofits
