At French Oil Mill Machinery Co., every project starts with understanding your operation and production goals. Our approach to designing a 50 ton hydraulic press—or presses in similar tonnage ranges—begins with learning about your business, materials, and processes. This allows us to engineer a hydraulic press for sale that delivers precision performance, efficiency, and long-term durability customized to your application.
50 Ton Hydraulic Press Designs, Plus Other Under 100 Ton Presses
French hydraulic press engineers design and manufacture an extensive range of hydraulic presses for sale under 100 tons. Each heavy-duty, stand-alone press or integrated press system is custom-built to maximize part quality and reduce life-cycle costs. Whether you need compact lab-scale units or full-scale production presses, French’s expertise ensures dependable, repeatable performance for decades of service.
Our 50 ton hydraulic press designs—as well as other models under 100 tons—can incorporate multiple user-focused options that align with your production requirements and process demands.
100 Ton and Under Hydraulic Press Features Can Include:
Every French-built hydraulic press for sale can be customized with engineering and control features that deliver accuracy, consistency, and ease of operation:
- Sideplate or column construction for structural reliability
- Compression molding, transfer molding, vacuum molding, and laminating styles available
- Up-acting or down-acting designs with multiple daylights
- Multi-zone heated and/or cooled platens for precise temperature control
- Automation features including shuttle systems and loading/unloading systems
- Precision control packages for digital accuracy and repeatability
- Built-in lift tubes for simplified placement and relocation
Backed by over a century of American manufacturing expertise, each hydraulic press for sale from French Oil Mill Machinery Co. combines proven performance with modern innovation—engineered to perform reliably for generations.
View a Sample of our Hydraulic Press Designs:

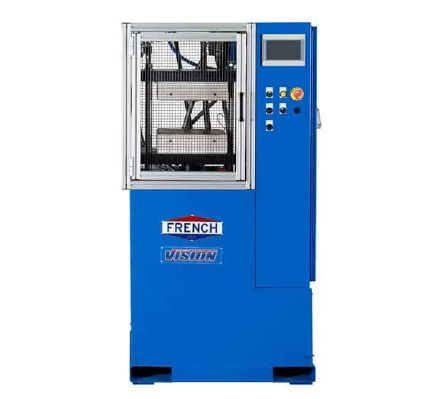

2,000 Lbs Vision Press
Construction: Four post, column
Molding process: Compression
Capacity: 2,000 LBS
Platen surface size: 12 x 12 inches
Number of openings: 1
Open daylight: 6 inches
Platen heating: Electrically heated platens, water-cooled
Operating temperature: 800 °F
Controls: Allen Bradley programmable controller with color touchscreen operator interface

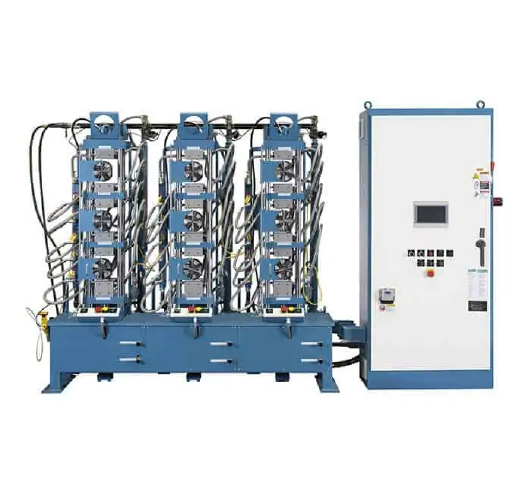

10 Ton Three Press System
Construction: Four post, column
Molding process: Compression
Capacity: 10 Ton each press
Platen surface size: 6 x 6 inches
Pressing surfaces: 9
Number of openings: 3 on each press
Open daylight: 8 inches
Platen heating: Electrically heated platens, water and fan-cooled
Operating temperature: 400 °F
Controls: CTI microprocessor controller (PLC) and 10.5” Maple color screen interface
Industry: Medical

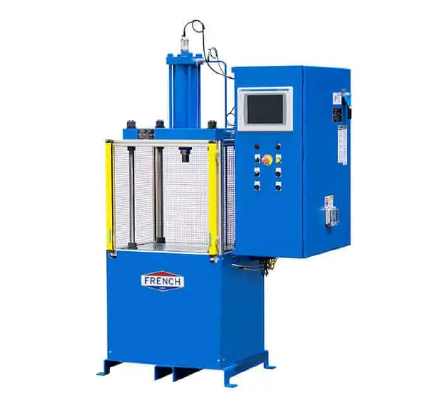

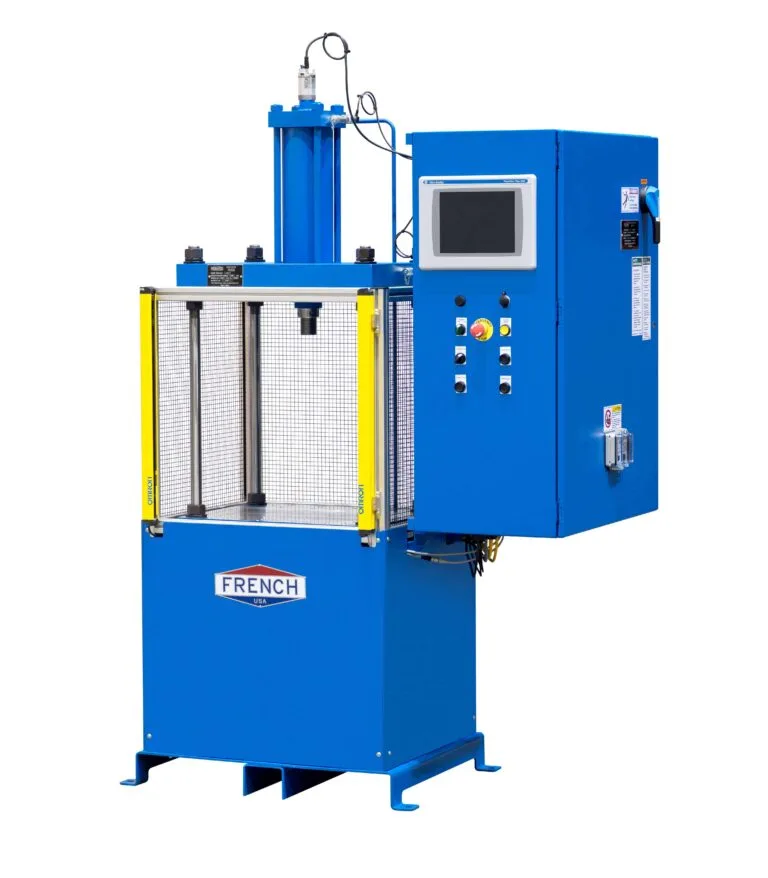

30 Ton Compaction Press
Construction: Column
Molding process: Compaction
Capacity: 2 to 30 Ton
Platen surface size: 18 x 18 inches
Number of openings: 1
Open daylight: 22 inches
Controls: AB Micrologix Processor with a Panel View interface
Press includes built-in lift truck tubes for easy placement

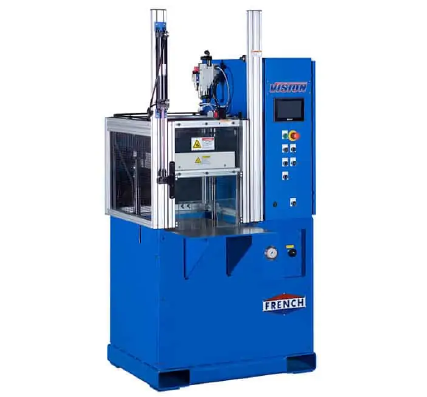

30 Ton Vision Press
Construction: Four post
Molding process: Compression
Capacity: 30 Ton (adjustable)
Platen surface size: 15 x 15 inches
Number of openings: 1
Open daylight: 6-12 inches (adjustable)
Platen heating: Electrically heated platens
Operating temperature: 500 °F
Controls: Allen Bradley PLC with color touchscreen operator interface

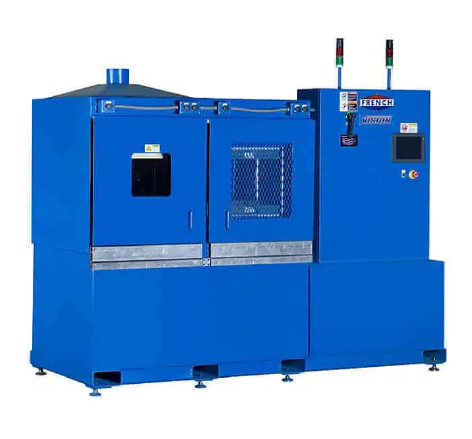

30 Ton and 75 Ton Vision System
Construction: Four post
Molding process: Compression
Capacity: 30 Ton and 75 Ton
Platen surface size: 18 x 18 inches
Number of openings: 1 each press
Open daylight: 18 inches
Platen heating: Electrically heated platens
Operating temperature: 750 °F
Controls: Allen-Bradley Micrologix programmable controller

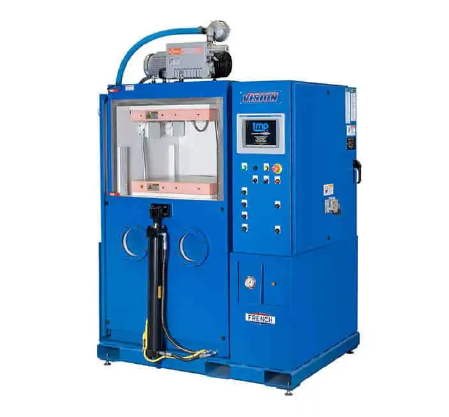

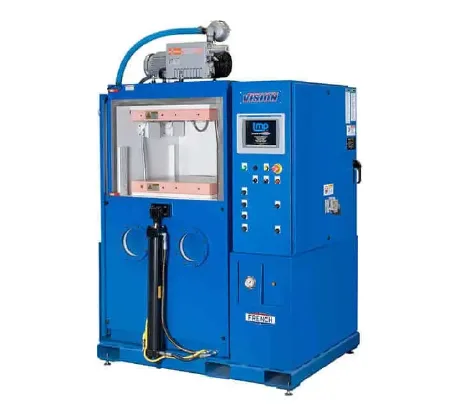

50 Ton Hydraulic Press (Vacuum)
Construction: Slab side
Molding process: Vacuum
Capacity: 50 Ton
Platen surface size: 24 x 24 inches
Number of openings: 1
Open daylight: 16 inches
Platen heating: Electrically heated, water-cooled
Operating temperature: 500 °F
Controls: AB Micrologix Processor with a Panel View interface
