Our approach to custom designing a hydraulic press starts with learning more about your business and manufacturing processes so we can work together to create a press with capabilities tailored to your needs.
600-975 Ton Hydraulic Press Designs
French hydraulic press engineers specialize in providing enhanced automation and advanced control systems to improve part quality and lower life-cycle costs.
600-975 Ton Hydraulic Press Features Can Include:
- Automation features including shuttle systems and loading/unloading systems
- Precision control packages
- Sideplate or column construction
- Upacting or downacting with multiple daylights
- Compression molding, transfer molding, vacuum molding and laminating styles available
- Reservoir and hydraulic power mounted on top, reducing press footprint
- Safety features including light curtains and alarms
- Heating and cooling platens
View a Sample of our Hydraulic Press Designs:
600 Ton Multi Daylight Press
Construction: Four post, column
Molding process: Compression
Capacity: 600 Ton
Pressing surface size: 48 x 54 inches
Number of openings: 8
Open daylight: 6 inches each
Platen heating: Steam heated platens
Controls: Allen Bradley PLC with color touch screen
Supplied with hydraulic lift table mounted to the front side of press
600 Ton Compression Press
Construction: Four post, column
Molding process: Compression
Capacity: 600 Ton
Pressing surface size: 42 x 42 inches
Number of openings: 1
Open daylight: 36 inches
Platen heating: Electrically heated platens
Operating temperature: 500 °F
Controls: Allen Bradley PLC with color display
PRODUCT DESIGN BY TYPE
DESIGN BY TONNAGE
Product Literature Downloads

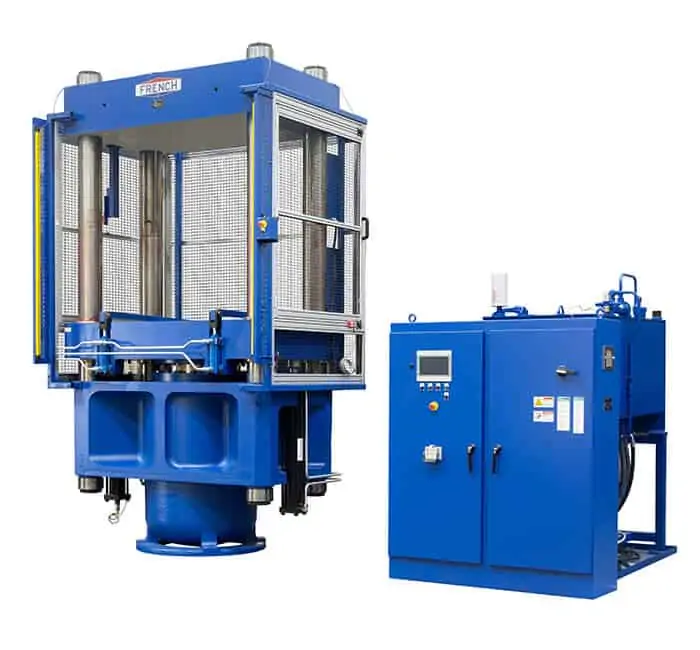

600 Ton Column Hydraulic Press
Construction: Four post, column
Molding process: Compression
Capacity: 150 to 600 Ton (adjustable)
Pressing surface size: 34 x 52 inches
Number of openings: 1
Open daylight: 62 inches
Controls: Allen Bradley PLC with color touch screen

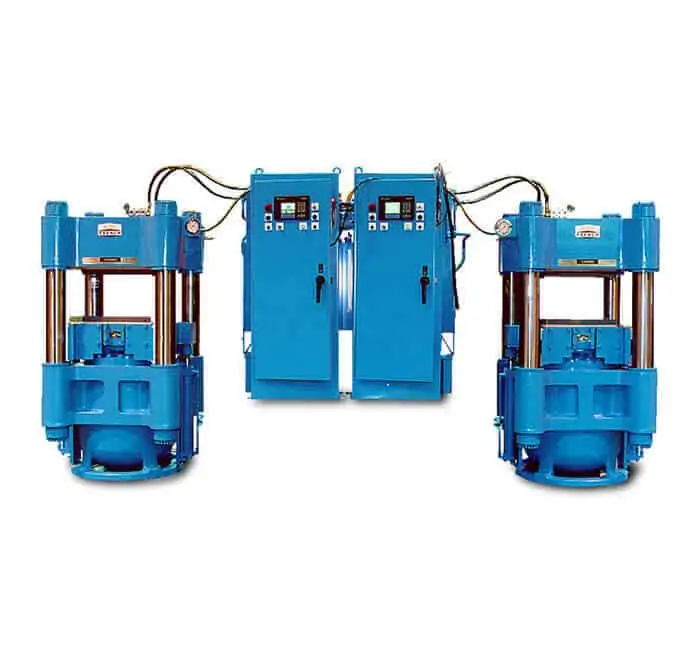

675 Ton Multi Press System
Construction: Upacting four post, column
Molding process: Compression
Capacity: 75 to 675 Ton (adjustable)
Pressing surface size: 24 x 24 inches
Number of openings: 2
Open daylight: 18 inches
Controls: Allen Bradley
850 Ton Hydraulic Press
Construction: Sideplate
Molding process: Compression
Capacity: 850 Ton
Pressing surface size: 40 x 40 inches
Number of openings: 2
Open daylight: 17 inches
Platen heating: Electrically heated platens
Operating temperature: 425 °F
Controls: Allen Bradley Compact Logix

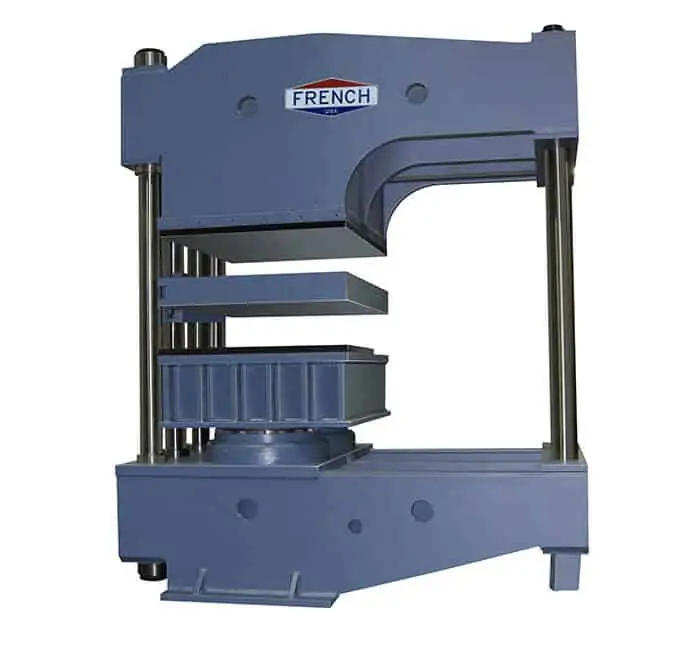

900 Ton Belt Cure Press
Construction: Post type
Molding process: Compression
Capacity: 900 Ton
Pressing surface size: 69 x 55 inches
Number of openings: 2
Open daylight: 14"
